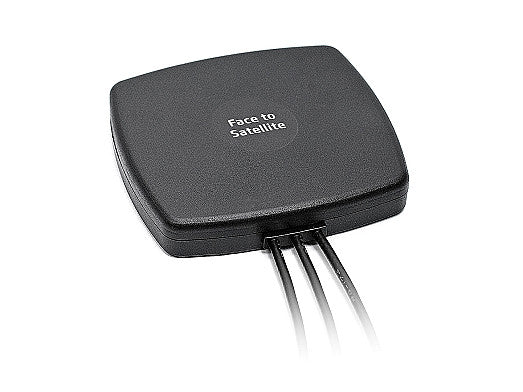

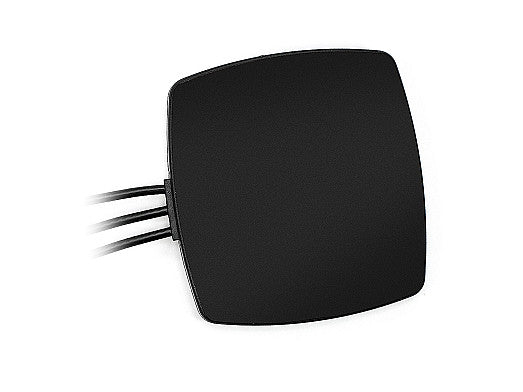

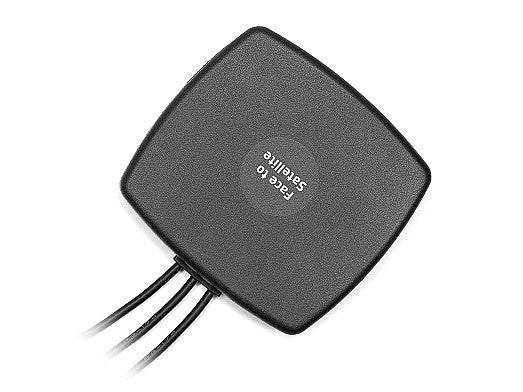

2J6041PGFa 4G/LTE, GNSS adhesive mount Antenna 3-in-1 SMA-M 300cm

This low-profile, ground plane independent antenna delivers reliable global connectivity by combining dual 4G LTE/3G/2G MIMO and GNSS (GPS, GLONASS, Galileo, QZSS) in a compact adhesive mount form factor. Designed for maximum efficiency and versatility, it is ideal for automotive navigation, telematics, fleet management, and remote monitoring applications. Its robust construction ensures durability in both indoor and outdoor environments, making it suitable for transportation, tracking, and industrial IoT deployments.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm

Installation / Environmental

2J6041PGFa antenna is an outdoor/indoor antenna equipped with three ports. The production material used is PC/ABS UV stable, protecting the antenna from temperatures between -40C and +85C. All cables on 2J6041PGFa antenna have an SMA-Male standard connector, a 300cm standard cable length and are fully customizable by offering additional connector types, cable lengths, and cable types. This antenna is ground plane independent making it suitable for installation anywhere on any surface. It does not require any metallic surface for its installation. The adhesive mount allows for easy installation and removal. It is a robust, reliable and durable antenna even in extreme environments. The 2J6041PGFa is RoHS compliant.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - Cellular/4G LTE (MIMO 1)

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.2:1, ~2.2:1
Efficiency (%): ~55.6, ~56.0, ~38.7
Peak Gain (dBi): ~2.9, ~3.2, ~2.1
Max. Input Power (W): 25
Polarisation: Linear
Impedance (Ohm): 50

Connection 2 - Cellular/4G LTE (MIMO 2)

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.3:1, ~1.2:1, ~2.0:1
Efficiency (%): ~50.5, ~53.9, ~41.2
Peak Gain (dBi): ~2.7, ~3.5, ~2.2
Max. Input Power (W): 25
Polarisation: Linear
Impedance (Ohm): 50

Connection 3 - GNSS

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
Impedance (Ohm): 50
