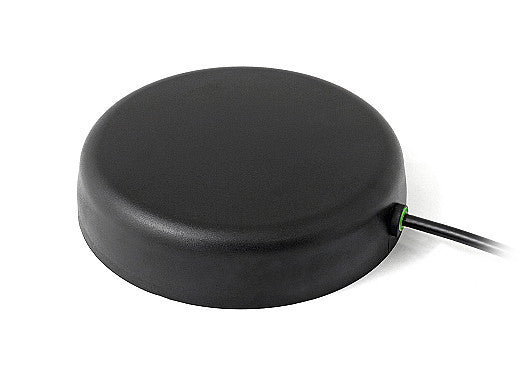

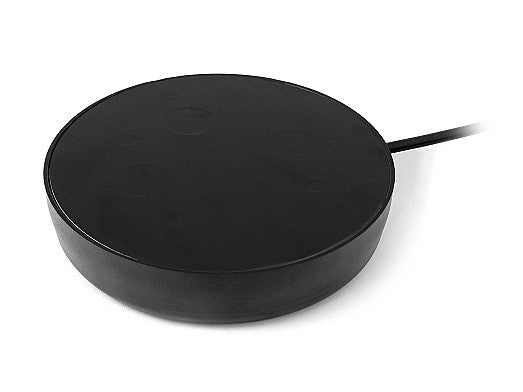

2J6510M ISM magnetic mount Antenna IP67 IP69K

This heavy-duty antenna is designed for reliable performance in demanding environments, supporting 433 MHz ISM applications such as LoRa, Sigfox, LPWA, and RFID. Its robust construction and ground plane dependent design make it ideal for industrial IoT, smart cities, asset tracking, and remote monitoring. The antenna is protected with IP67, IP69K, and IK09 ratings, ensuring resistance to water, dust, and mechanical impacts.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.1:1
Efficiency (%): ~58.1
Peak Gain (dBi): ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
