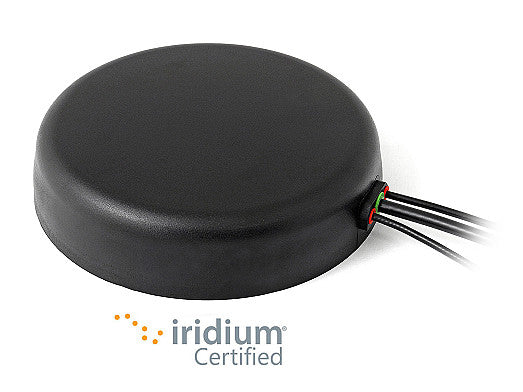

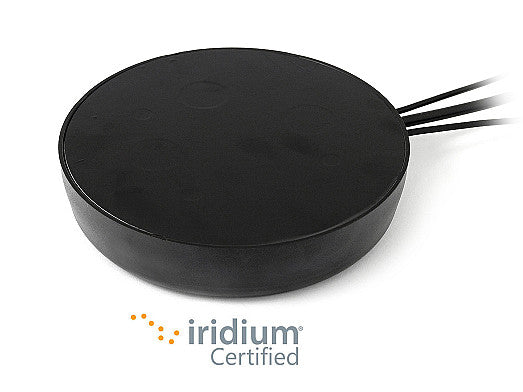

2J6552MGF Cellular, GNSS, Iridium magnetic mount Antenna 3-in-1 SMA-M 300cm

This high-performance 3-in-1 antenna delivers reliable global connectivity for cellular, GNSS, and Iridium applications in a single compact housing. Its robust design ensures consistent operation for tracking, navigation, fleet management, and worldwide voice/data communications. The omni-directional cellular element supports 2G and 3G networks, while the active GNSS element provides precise navigation across multiple satellite constellations. The Iridium element enables dependable satellite communication, even in remote locations. Ideal for automotive, telematics, emergency, and commercial applications.

Connections

3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1
IRIDIUM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LMR100

Installation / Environmental

For external and internal applications, the antenna is manufactured from ABS UV stable material, protecting the antenna from temperatures between -40C and +85C. This magnetic mount antenna is easy to install with maximum durability. All cables come with SMA-Male connector type and 300cm LMR100 standard cable length and are fully customizable by offering additional connector types, cable lengths, and cable types. The antenna is RoHS compliant with complete IK09, IP67 and IP69 certification.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Multi-Technology
Cellular Technologies: 3G, 2G
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.4:1, ~1.5:1
Efficiency (%): ~39.4, ~40.7
Peak Gain (dBi): ~1.6, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Iridium

Standards: IRIDIUM
Frequency: 1616-1627 MHz
Passive Gain (dBi): ~4.5
Efficiency (%): ~76
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP

Connection 3 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7V
