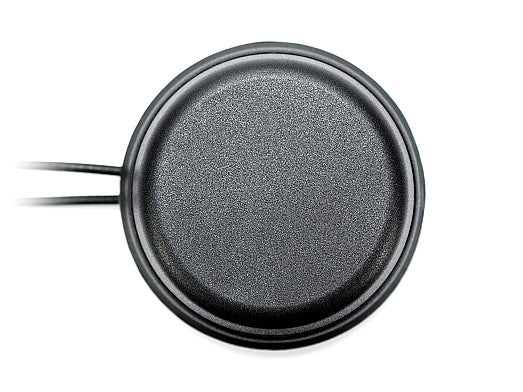

2J6600BGF 3G, GNSS screw mount Antenna 2-in-1 IP67/IP69K

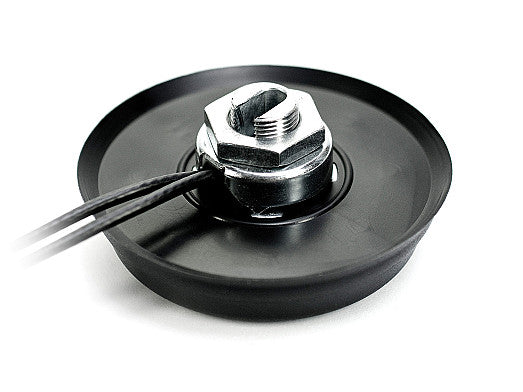

This low-profile, ground plane independent antenna is designed for reliable 3G/2G cellular and GNSS connectivity in demanding environments. Its 2-in-1 combination design makes it ideal for applications such as asset tracking, fleet management, telematics, and smart city infrastructure. The antenna features anti-rotation mounting for secure installation and is suitable for use in harsh outdoor conditions thanks to its IP67 and IP69K protection ratings.

Connections

3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 3G, 2G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.7:1, ~2.1:1
Efficiency (%): ~17.6, ~11.4
Peak Gain (dBi): ~-3.6, ~-3.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Active Gain (dB): 27 dB @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
