2J6604B 3G, 2G screw mount Antenna IP67 IP69K

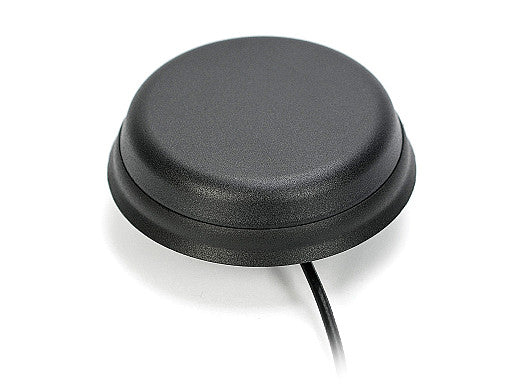

This low-profile screw mount antenna is designed for reliable 2G and 3G cellular connectivity in demanding environments. Its ground plane independence and anti-rotation mounting make it ideal for automotive, telematics, asset tracking, and industrial applications. The antenna features a robust housing with IP67 and IP69K protection, ensuring durability against water, dust, and high-pressure cleaning. Its compact design allows for easy integration into a wide range of devices and installations.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C

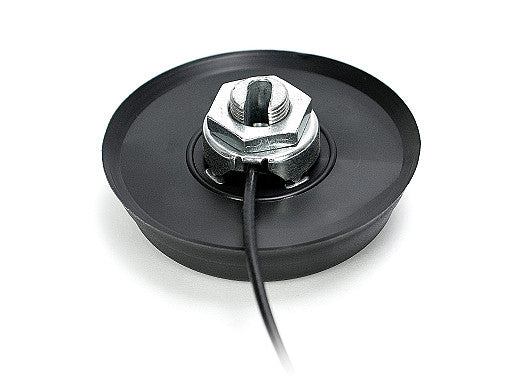

Mounting: Screw Mount
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.8:1, ~1.8:1
Efficiency (%): ~20.0, ~25.6
Peak Gain (dBi): ~-2.8, ~0.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
