2J6726B Iridium screw mount Antenna SMA-M 300cm IP67 IP69K IK10

This high-performance dome antenna is designed for reliable global Iridium satellite connectivity, delivering optimal signal quality within the 1616–1627 MHz frequency range. Its hemispherical radiation pattern ensures strong, consistent coverage, while right-hand circular polarization (RHCP) minimizes multi-path interference for maximum signal strength and quality. The rugged, low-profile housing is made from ASA thermoplastic for durability in extreme environments, and the antenna is ground plane independent for flexible installation. Certified to IP67, IP69K, IK10, and Iridium standards, it is ideal for commercial, residential, emergency, transportation, and asset tracking applications.

Connections

IRIDIUM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LMR100

Installation / Environmental

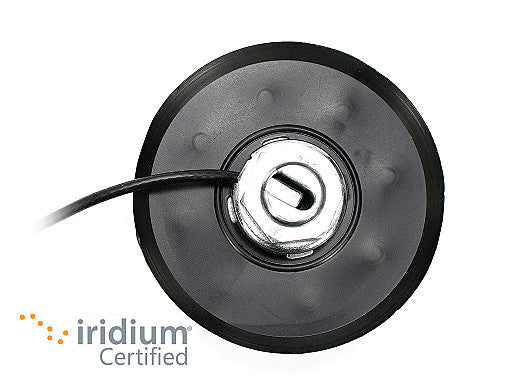

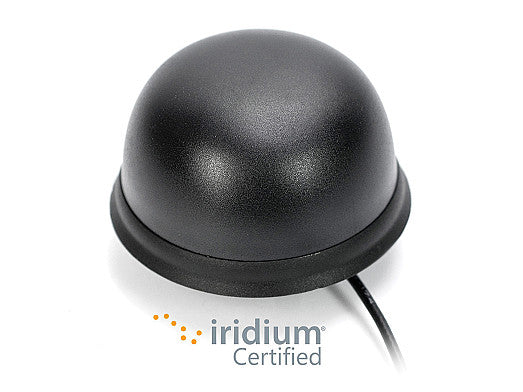

The dome style housing is available with ASA material, the highest quality production-grade thermoplastic, offering durability and protection in extreme environments withstanding temperatures between -40C and +80C. This antenna reaches its maximum gain when installed in an open external area facing the sky – which is critical for high-performance applications. With low-profile dome dimensions (∅ 77.3 x 36.5 mm) and ground plane independence, this compact and efficient screw mount antenna can be easily installed.  This product is manufactured with RoHS compliance, IP67, IP69K, IK10 and Iridium certification.

Technical Specifications

Operating Temperature: -40°C to +85°C
Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
VSWR: ~1.2:1
Efficiency (%): ~76
Passive Gain (dBiC): ~4.5
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP
