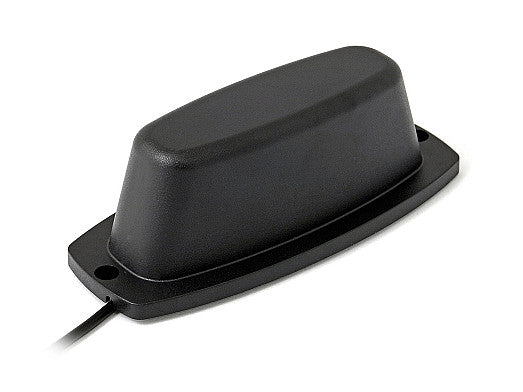

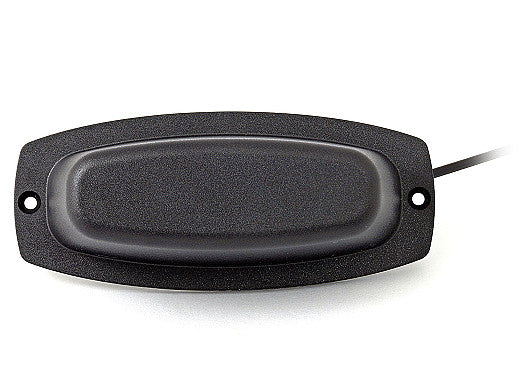

2J6804MP 3G, 2G cellular Antenna adhesive/magnetic mount customizable

This versatile antenna is designed for reliable 3G and 2G cellular connectivity, making it ideal for a wide range of applications including mobile networks, asset tracking, telematics, and more. Its compact form factor and ground plane dependent design ensure optimal performance in challenging environments. The antenna supports both adhesive and magnetic mounting options, providing flexibility for installation on various surfaces.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C

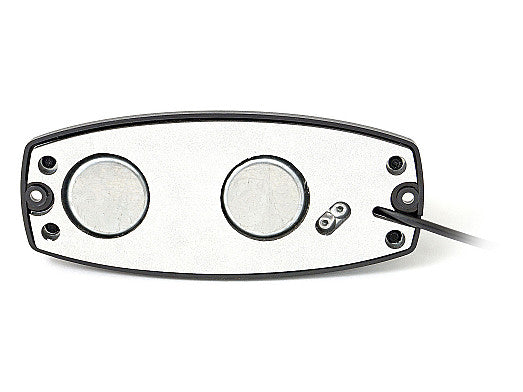

Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~39, ~36
Peak Gain (dBi): ~0.9, ~0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
