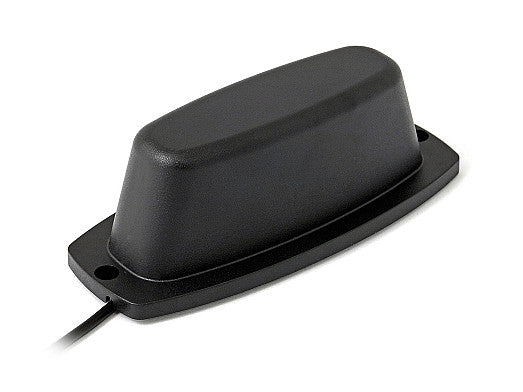

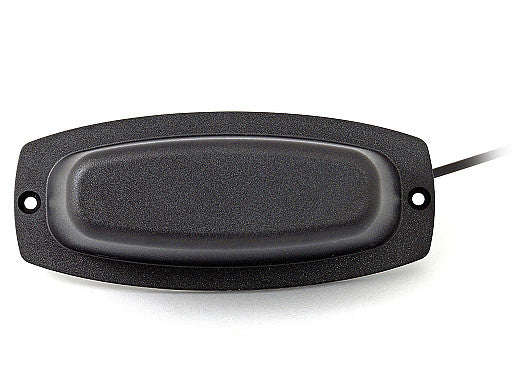

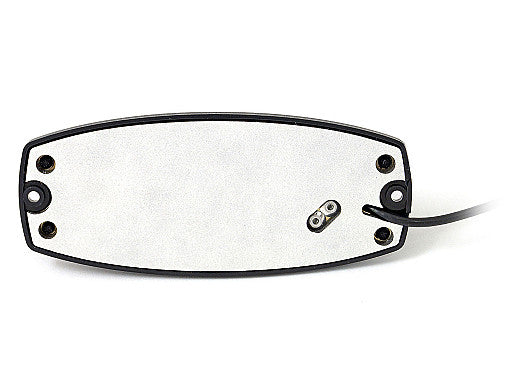

2J6804P 3G, 2G cellular adhesive mount Antenna

This adhesive mount antenna is designed for reliable 3G and 2G cellular connectivity, optimized for installation on metal surfaces. Its ground plane dependent design ensures stable performance, making it ideal for applications such as mobile and cellular networks, machine control, asset tracking, automotive, and telecommunication systems. The customizable cable and connector options allow for flexible integration into a wide range of devices and environments.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~39, ~26
Peak Gain (dBi): ~0.7, ~0.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
