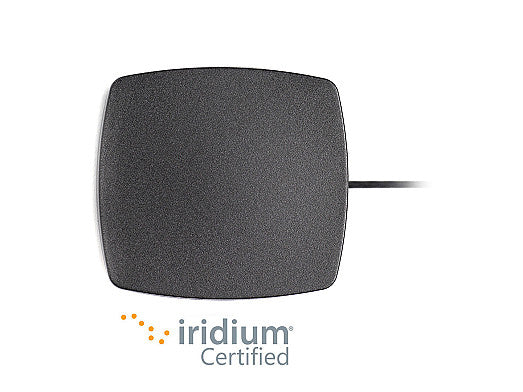

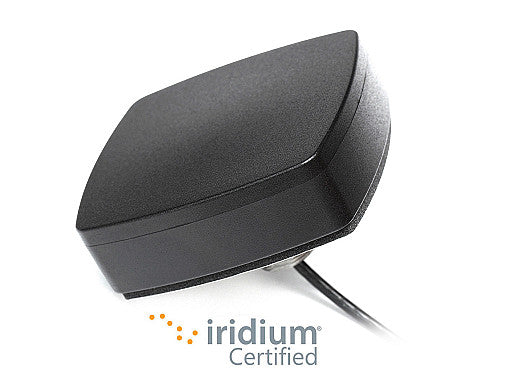

2J6926B Iridium screw mount Antenna Phoenix SMA-M 300cm IP67/IP69

This low-profile, high-gain antenna is engineered for reliable global connectivity via the Iridium satellite network. Its robust design ensures optimal performance for voice and data communication in demanding environments, making it ideal for applications such as satellite phones, asset tracking, fleet management, emergency communications, and remote monitoring. The hemispherical radiation pattern with RHCP polarization delivers strong signal quality and minimizes multi-path interference for consistent operation.

Connections

IRIDIUM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

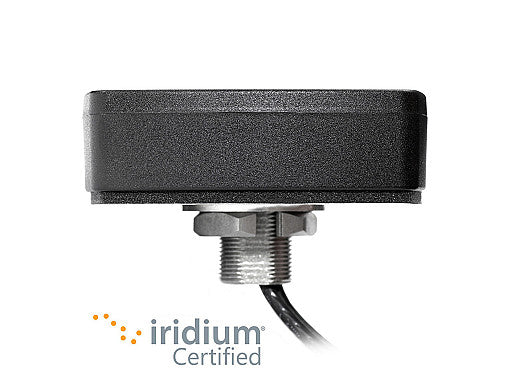

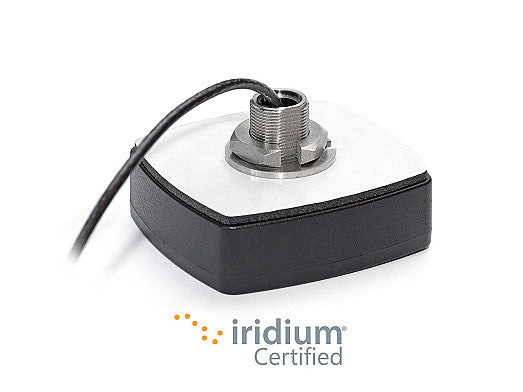

This low-profile antenna has dimensions of 80 x 74 x 25.6 mm and is manufactured with IP67/IP69 certified ABS UV stable material (available in black and white). ABS material provides durability and protection against indoor or outdoor environmental temperatures ranging from -40°C to +85°C without compromising antenna performance. A screw mount with anti-rotation mechanism offers a secure installation to a wide range of surfaces.
The 2J6926B comes with standard SMA-Male connector and a 300 cm long D302 cable. We also offer a wide range of alternative connectors and cables for any customization needs. Our team of experts is available to assist our customers with antenna selection and customization needs.

Technical Specifications

Operating Temperature: -40°C to +85°C
Mounting: Screw Mount
Type: Single
Location: External

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
Peak Gain (dBic): ~4.5
Efficiency (%): ~76.6
Radiation Pattern: Hemispherical
Polarization: RHCP
