2J6926MP Iridium magnetic/adhesive mount Antenna SMA-M 300cm

This low-profile antenna is engineered for reliable global connectivity on the Iridium satellite network, delivering high gain and efficiency for voice and data communications. Its hemispherical radiation pattern and RHCP polarization ensure optimal signal quality, making it ideal for applications such as satellite phones, asset tracking, fleet management, and emergency communications. The robust ABS housing is IP67/IP69 rated for durability in harsh environments and is available in black or white.

Connections

IRIDIUM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

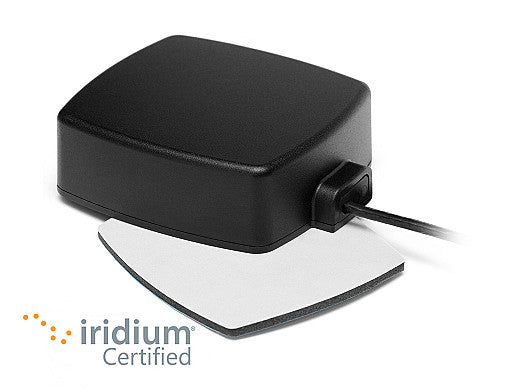

With a convenient peel-n-stick adhesive magnetic mount, this antenna can be simply installed to any metal surface (vehicle or metal building) without the need for additional grounding. The adhesive and magnetic mount is strong enough for long-term installations but also offers an easy option for temporary applications and relocation. We recommend installing this antenna with a clear line of sight and directed to the signal for the most reliable connectivity.

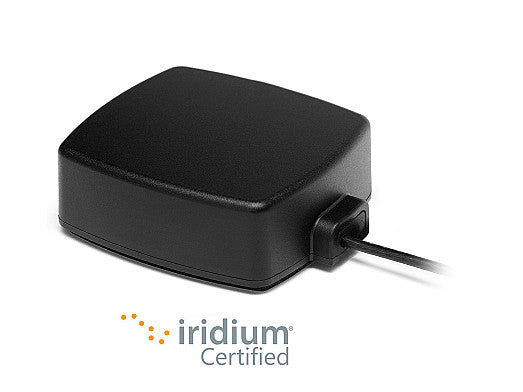

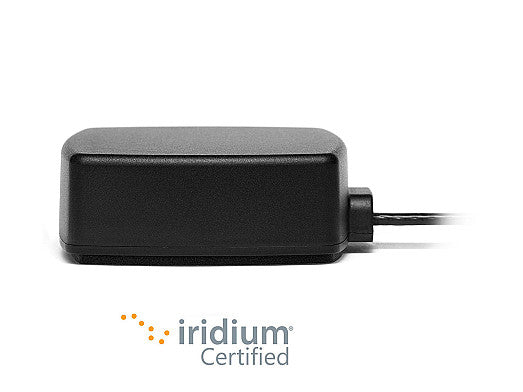

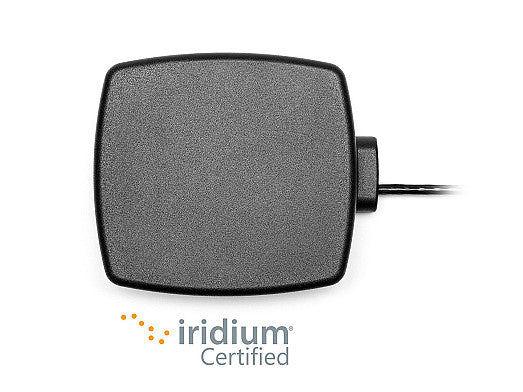

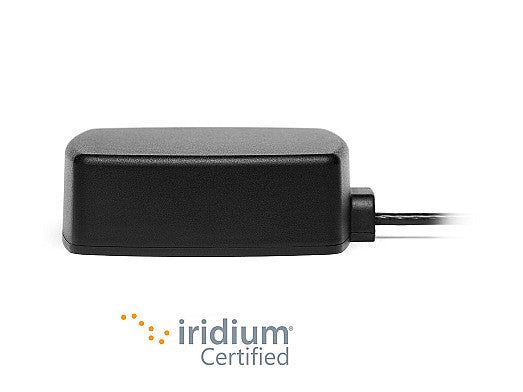

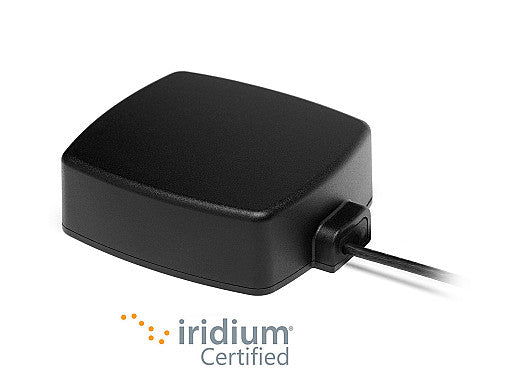

This low-profile antenna has dimensions of 80 x 76 x 27/30 mm and is manufactured with IP67/IP69 certified ABS UV stable material (available in black and white). ABS material provides durability and protection against indoor or outdoor environmental temperatures ranging from -40C to + 85C without compromising antenna performance.

The 2J6926MP comes with standard SMA-Male connector and a 300 cm long D302 cable. We also offer a wide range of alternative connectors and cables for any customization needs.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Type: Single
Location: External

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
VSWR: ~1.2:1
Efficiency (%): ~76
Passive Gain (dBiC): ~4.5
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP
