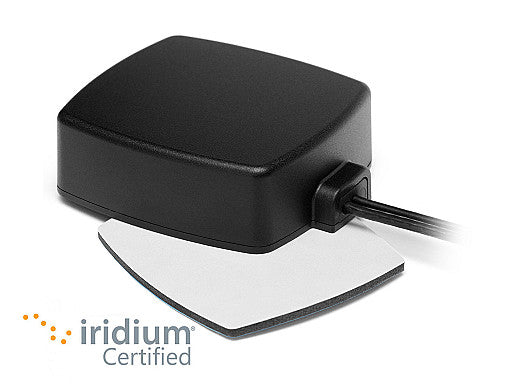

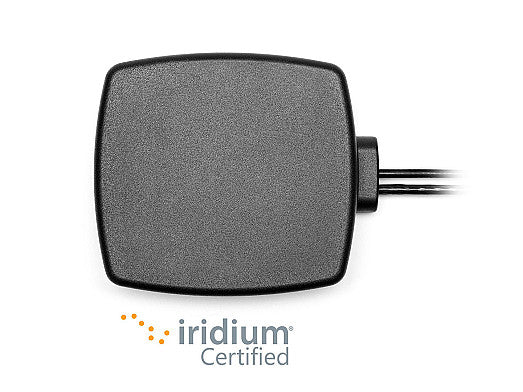

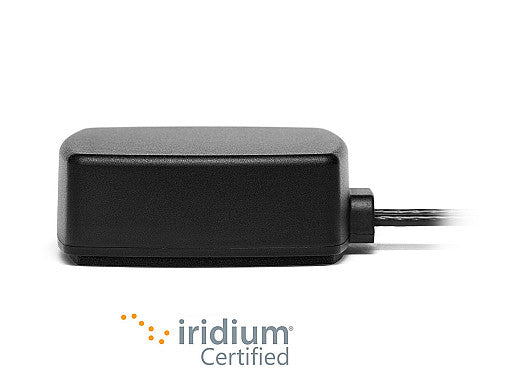

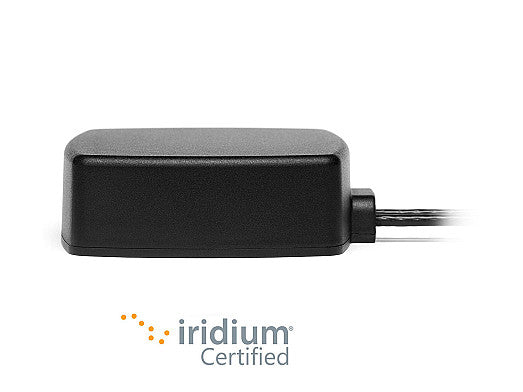

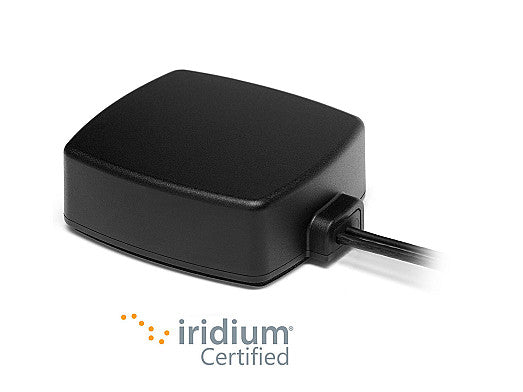

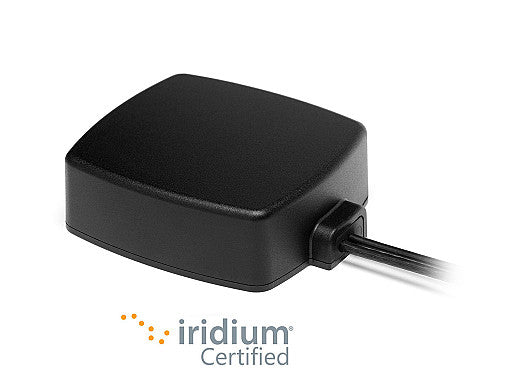

2J6933MPGFz GNSS, Iridium magnetic adhesive mount Antenna 2-in-1 SMA-M 300cm IP67/IP69

This compact 2-in-1 antenna delivers high-performance GNSS and Iridium connectivity in a single, low-profile solution. Designed for both internal and external use, it is ideal for applications such as tracking, mapping, industrial machinery, marine, aviation, and automotive navigation. The antenna features a robust, UV-stable ABS housing and is certified to IP67 and IP69 standards for maximum durability in harsh environments. Its magnetic and adhesive mounting options allow for quick, flexible installation on metal surfaces, making it suitable for both permanent and temporary setups. The active GNSS element ensures precise positioning, while the Iridium element provides reliable global satellite communication, even in remote locations.

Connections

GPS/GLO/QZSS/Galileo/L1
IRIDIUM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm

Installation / Environmental

For internal and external applications, the production material used is black/white ABS UV stable, protecting the antenna from temperatures between -40C and +85C. With a convenient peel-n-stick adhesive magnetic mount, this antenna can be simply installed to any metal surface (vehicle or metal building) without the need for additional grounding. The adhesive and magnetic mount is strong enough for long-term installations but also offers an easy option for temporary applications and relocation. We recommend installing this antenna with a clear line of sight and directed to the signal for the most reliable connectivity. All two cables on the 2J6933MPGFz antenna have a SMA-Male standard connector and come with 300cm standard cable length. The 2J6933MPGFz is fully customizable by offering other connector types, cable lengths and cable types and is manufactured with RoHS compliance and complete IP67, IP69 and Iridium certification.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
Peak Gain (dBic): ~4.5
Efficiency (%): ~76
Impedance (Ohm): 50
Axial Ratio (dB): 3 max.
Radiation Pattern: Hemispherical
Polarization: RHCP

Connection 2 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 – 3.6
Current (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7V
