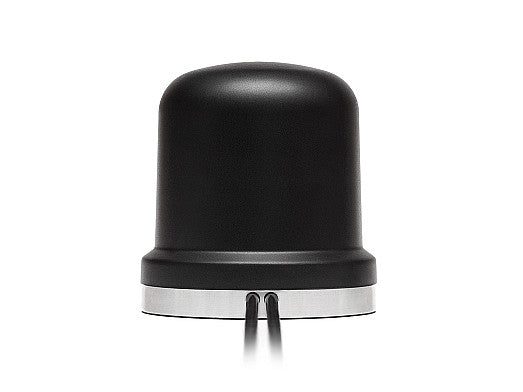

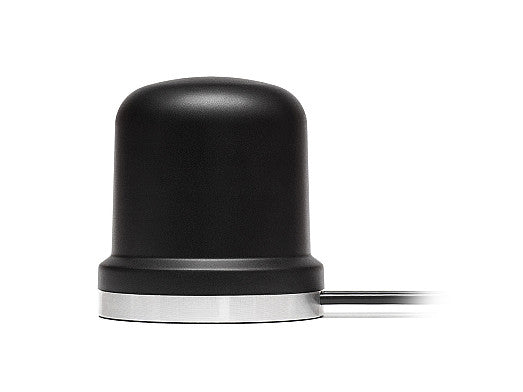

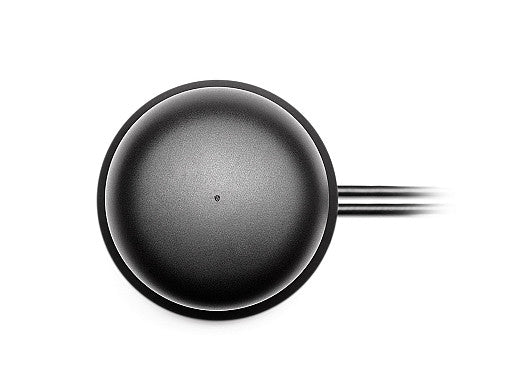

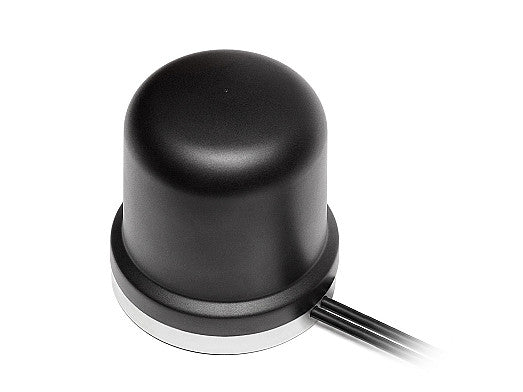

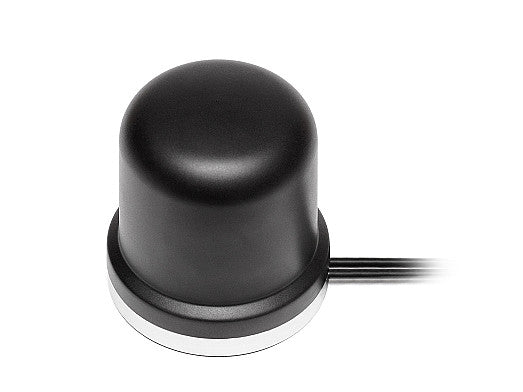

2J7083Ma 5G MIMO magnetic mount Antenna Medusa SMA-M 300cm IP67/IP69

This ultra-wideband magnetic mount antenna delivers robust 5G MIMO connectivity with full backward compatibility for 4G, 3G, and 2G networks. Designed for high-performance and reliability, it supports enhanced mobile broadband and ultra-reliable low-latency communication, making it ideal for demanding applications such as critical communications, public safety, and industrial IoT. The compact, heavy-duty design ensures durability and efficient operation in outdoor environments, while the omni-directional radiation pattern maximizes signal strength and throughput. Suitable for use in vehicles, base stations, routers, and smart city infrastructure.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

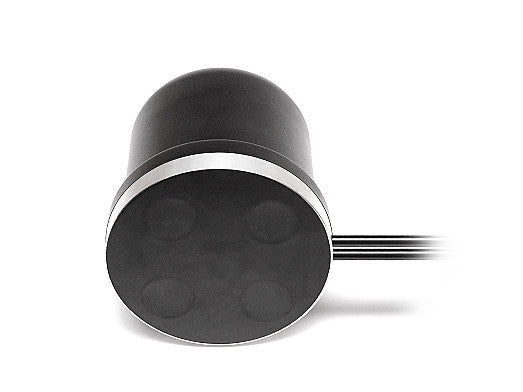

The easy-to-install heavy-duty antenna offers durability and efficiency. The magnetic mount feature facilitates quick on-and-off installations on any metal surfaces such as vehicles, metal buildings, and steel towers. This ground plane independent antenna measures only 96 x 102 mm. The cables are low loss LL195 cables that measure 300 cm in length and are fed through SMA-Male connectors for a secure connection. These cables are highly preferred for high-frequency applications up to 6 GHz.
The fully IP67 and IP69 rated antenna is manufactured with ASA UV stable material that provides protection against water and moisture while maintaining optimal operation in outdoor applications. This antenna is manufactured with both REACH and RoHS compliance along with IK09 ratings for enhanced anti-vandal security.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.3, ~-10.8, ~-9.4, ~-6.7
VSWR: ~3.6:1, ~2.0:1, ~2.3:1, ~2.9:1
Efficiency (%): ~45.7, ~58.8, ~49.2, ~31.9
Peak Gain (dBi): ~0.4, ~4.5, ~5.3, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.5, ~-11.4, ~-11.3, ~-9.5
VSWR: ~3.5:1, ~1.8:1, ~1.9:1, ~2.1:1
Efficiency (%): ~45.3, ~58.3, ~48.8, ~42.2
Peak Gain (dBi): ~0.5, ~4.1, ~4.9, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
