2J7107BGF TETRA/UHF, GNSS screw mount Antenna Big Medusa SMA-M 300cm

This high-performance antenna is engineered for critical communications and precision navigation, combining TETRA/UHF and GNSS (GPS, GLONASS, Galileo, QZSS) technologies in a rugged, heavy-duty dome housing. Its robust design ensures reliable operation in demanding outdoor environments, making it ideal for public safety, transportation, utilities, government, and commercial applications. The antenna delivers high gain and efficiency for consistent, fast communication and accurate positioning, even in challenging urban or industrial settings.

• Supports TETRA/UHF for mission-critical communications
• Active GNSS for precise navigation and tracking
• Heavy-duty, impact-resistant, and weatherproof housing (IP67, IP69, IK09)
• Ideal for public safety, automotive, industrial, and mapping devices

Connections

GPS/GLO/QZSS/Galileo/L1
380-470MHz/LPWA/TETRA/UHF

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm (TETRA/UHF), 300cm (GNSS)
• Cable Type: LL195 (TETRA/UHF), LL100 (GNSS)

Installation / Environmental

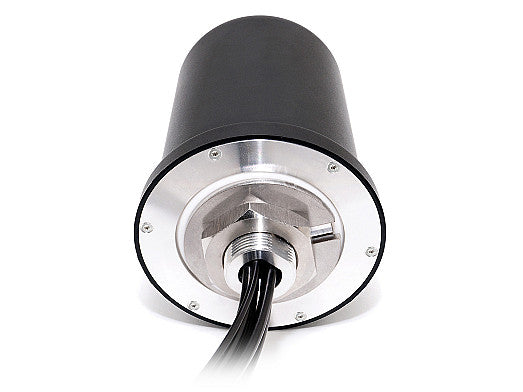

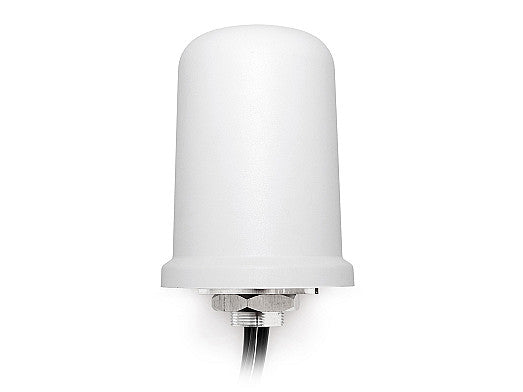

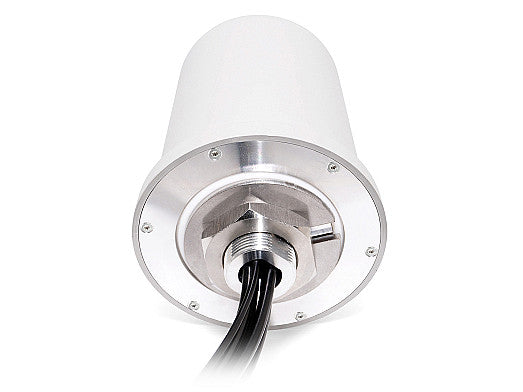

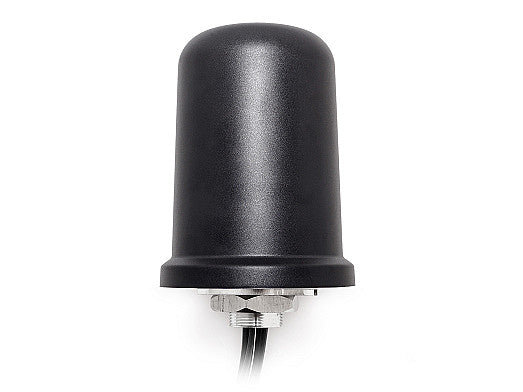

The dome shaped housing measures Ø 96 x H 130 mm and is manufactured with durable ASA material that can operate in extreme temperatures without any compromise to performance. The antenna base is made with aluminum alloy that feeds the dual cables through the anti-rotation screw mount. 2J7107BGF is fully IP67, IP69 and IK09 rated and gives this antenna complete resistance to water, dust, and impact, making it ideal for outdoor rugged environments. The 2J7107BGF comes with a 300 cm long LL195 cable for the TETRA/UHF connection and a LL100 cable for the GNSS connection with SMA-Male connector types. We offer a large selection of alternative connectors and cables to meet any customization needs. This antenna has been measured in a certified 3D Anechoic Chamber and tuned for optimal performance. All products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Loaded Dipole, Active GNSS
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - TETRA/UHF

Standards: TETRA/UHF
Frequency: 380-470 MHz
VSWR: ~1.5:1
Efficiency (%): ~73
Peak Gain (dBi): ~2.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GNSS (GPS/GLONASS/QZSS/Galileo)

Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~3.6
Active Gain (dB): 28 @ 2.7 V
Impedance (Ohm): 50
Saw Filter Type: Pre-Filter
Voltage Range (V): 1.5 - 3.6
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
