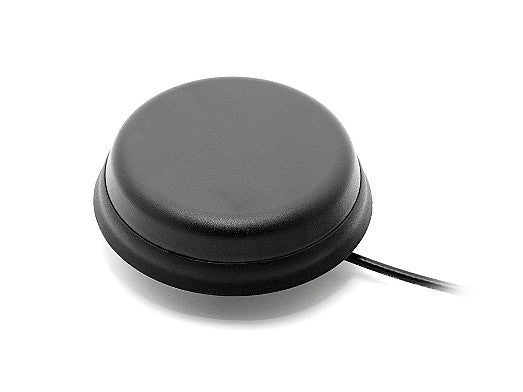

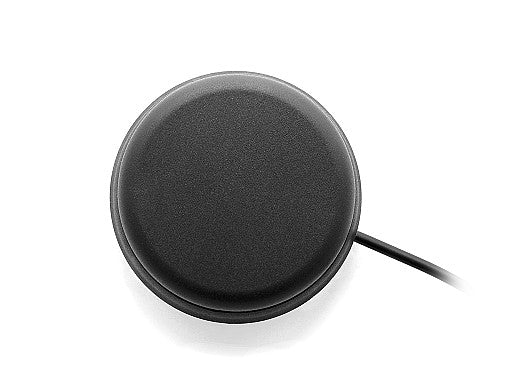

2J7401BGF GNSS screw mount Antenna Mini-Blackhat SMA-M IP67 IP69K

This low-profile, high-efficiency antenna is designed for reliable and precise global navigation. It is ideal for external use on vehicles and outdoor assets, supporting all major GNSS bands including GPS, GLONASS, QZSS, and Galileo. The compact, ground plane independent design ensures accurate positioning even in challenging environments, making it perfect for automotive, transportation, tracking, mapping, and autonomous applications. The integrated pre-filter provides excellent out-of-band rejection while maintaining high active gain for optimal performance.

• Ideal for tracking, mapping, and navigation
• Ground plane independent for flexible installation
• Waterproof and vandal-resistant for harsh environments
• Low-profile, anti-rotation screw mount design

Connections

GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-M

Installation / Environmental

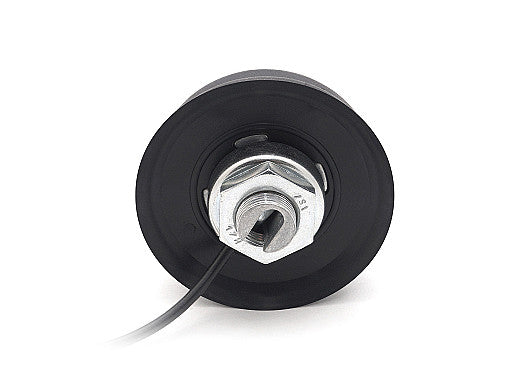

The 2J7401BGF antenna measures only Ø 60 × 15.3 mm in size, has an anti-rotation screw mount option, and is ground plane independent. This low-profile antenna is manufactured with a high-grade PC + ASA UV stable IP67, and IP69K rated enclosure that is anti-corrosive material and is resistant to physical impacts and vandalism making it extremely durable in temperatures ranging between -40C and +85C ideal for outdoor applications. This antenna comes with a standard SMA-Male connector. It is fully customizable with customized connector types, cable lengths, and cable types. 2J7401BGF is manufactured without any hazardous materials and is REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 @2.7V
Out of Band Rejection (dB): ~43
ESD Protection (kV): 6
