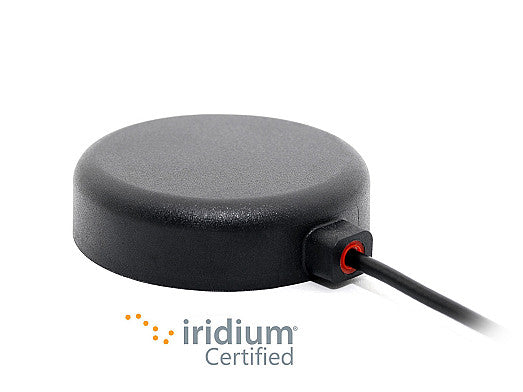

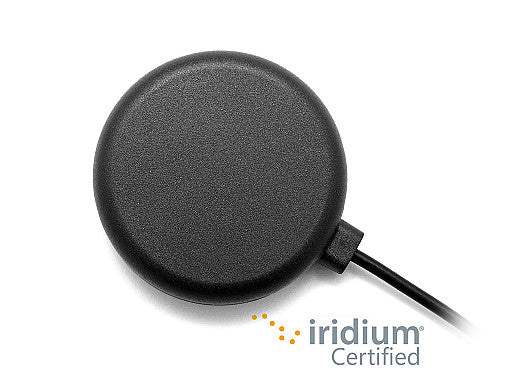

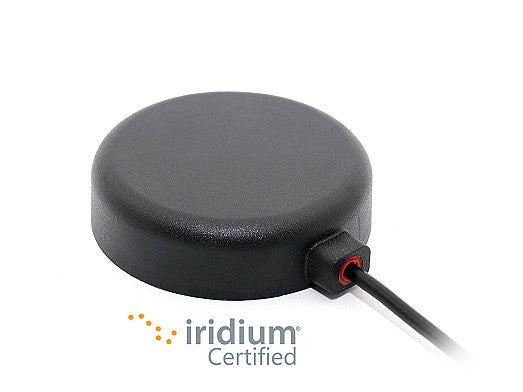

2J7434MPz GNSS, Iridium magnetic/adhesive mount Antenna SMA-M 300cm

This compact antenna is designed for high-precision positioning and reliable data or voice communication, supporting GPS, Galileo, QZSS, and Iridium standards. Its low-profile housing is resistant to UV, moisture, and heat, making it ideal for automotive, transportation, and industrial applications where durability and accuracy are essential. The antenna is suitable for both magnetic and adhesive mounting, allowing flexible installation on various surfaces. Typical use cases include emergency response, tracking, mapping devices, and industrial machinery.

Connections

GPS/QZSS/Galileo/L1-IRIDIUM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL100

Installation / Environmental

The low-profile antenna housing, measuring Ø 54 × 14.7 mm, is manufactured with high quality polycarbonate (PC) and acrylic-styrene-acrylate terpolymer (ASA) that is resistant to UV, moisture, and heat. For optimal performance, the recommended operational and storage temperatures are -40C to +85C.

2J7434MPz comes with a powerful magnetic mount that is strong enough for long term applications but also offers the convenience of frequent relocation on any metal surfaces. In case adhesive mount required, antenna is equipped with double side adhesive sticker. For optimal antenna operation, we recommend the antenna is installed facing up towards the sky with an uninterrupted signal path.

Delivered with a standard SMA-Male connector and a 300 cm long LL100 cable that is tuned for excellent processing properties, outstanding coupling resistance, stable impedance, low signal attenuation and is approved by most OEM’s. Our team of experts is available to assist in customizing options by offering a wide range of alternative connectors for absolute customer satisfaction.

All our products are tested rigorously to ensure absolute antenna function in the most extreme conditions to achieve 100% customer satisfaction. 2J Antennas supports the health of our environment and all our products are manufactured without hazardous materials while maintaining full REACH and RoHS compliance. This antenna is IP67, IP69 and Iridium certified.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Type: Single
Location: External

Connection 1 - GPS-IRIDIUM

Standards: GPS/QZSS/Galileo-IRIDIUM
Frequency: 1575.42, 1616-1627 MHz
Peak Gain (dBi): ~2.5, ~2.6
Efficiency (%): ~66.6, ~65.9
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Polarisation: RHCP
