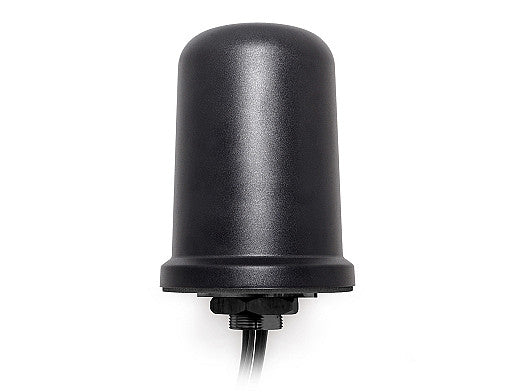

2J7B83Ba 5G screw mount Antenna MIMO IP67/IP69

This lightweight, heavy-duty antenna is engineered for high-performance 5G connectivity in demanding environments. Featuring a robust ASA plastic base, it is ideal for permanent installations where durability and weather resistance are critical. The antenna supports ultra-wideband operation across all major 5G, 4G, 3G, and 2G frequencies, making it suitable for applications such as intelligent machine control, fleet management, medical emergency, construction, agriculture, and transportation. Its ground plane independence and anti-rotation screw mount design ensure reliable, easy installation on a wide range of surfaces. The housing is fully dust and waterproof, certified to IP67 and IP69 standards, for reliable operation in harsh outdoor conditions.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT

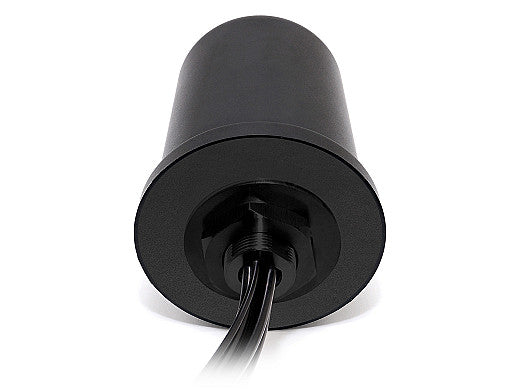

Mounting: Screw Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-6.8, ~-16.5, ~-10.4, ~-14.3
VSWR: ~3.1:1, ~1.5:1, ~2.1:1, ~1.5:1
Efficiency (%): ~41.5, ~56.8, ~45.2, ~41.1
Peak Gain (dBi): ~-0.2, ~3.7, ~3.9, ~4.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-7.0, ~-16.2, ~-11.4, ~-14.8
VSWR: ~3.0:1, ~1.5:1, ~2.0:1, ~1.5:1
Efficiency (%): ~42.1, ~59.9, ~44.8, ~44.5
Peak Gain (dBi): ~0.2, ~3.9, ~4.0, ~4.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
