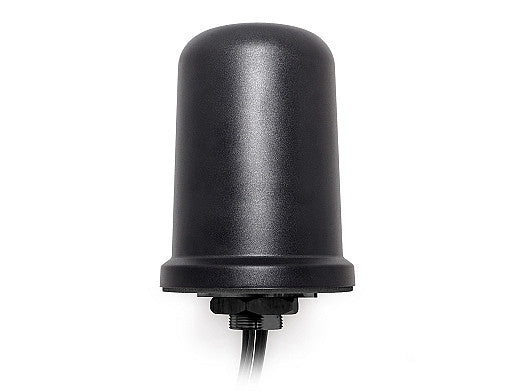

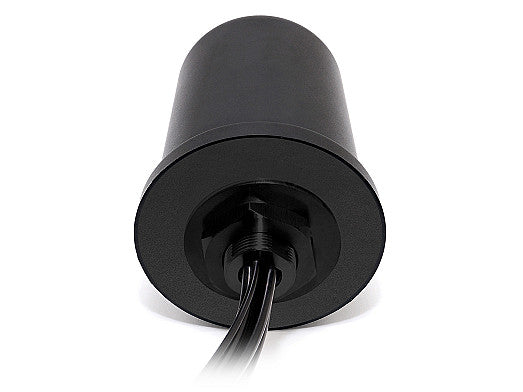

2J7B84BGFc 5G, GNSS screw mount Antenna 5-in-1 SMA-M 300cm IP67/IP69

This heavy-duty 5-in-1 antenna is engineered for robust and reliable connectivity, combining four 5G NR MIMO elements with a dedicated GNSS/GPS connection. Designed for global compatibility, it supports 5G NR, 4G LTE, 3G, and 2G bands, ensuring seamless broadband performance across diverse environments. The antenna is ideal for demanding applications such as public safety, fleet management, industrial automation, and IoT deployments, offering high gain, ground plane independence, and easy screw-mount installation. Its durable ASA UV-stable housing and IP67/IP69 ratings provide maximum protection against dust and water, making it suitable for outdoor and harsh conditions.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

The antenna is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.6 to ~-16.8
VSWR: ~3.5:1 to ~1.4:1
Efficiency (%): ~31.4 to ~42.8
Peak Gain (dBi): ~1.2 to ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-6.2 to ~-16.0
VSWR: ~3.2:1 to ~1.5:1
Efficiency (%): ~31.8 to ~42.8
Peak Gain (dBi): ~1.2 to ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.6 to ~-16.7
VSWR: ~3.7:1 to ~1.4:1
Efficiency (%): ~31.7 to ~41.7
Peak Gain (dBi): ~1.3 to ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.9 to ~-16.8
VSWR: ~3.3:1 to ~1.5:1
Efficiency (%): ~31.4 to ~42.7
Peak Gain (dBi): ~1.7 to ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 5 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1610
VSWR: <=1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137.5
Out of Band Rejection (dB): 32
