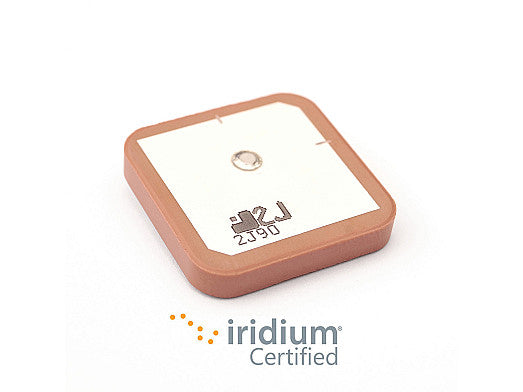

2JCP2542601a Iridium thru-hole mount ceramic patch Antenna

This low-profile ceramic patch antenna delivers reliable global connectivity for Iridium satellite voice and data communication. Designed for embedded applications, it features a hemispherical radiation pattern and right-hand circular polarization (RHCP) to optimize signal strength and reject multi-path interference. Its compact size and thru-hole mounting make it ideal for space-restricted installations in commercial, residential, emergency, and transportation markets. The durable ceramic housing ensures performance in extreme environments, and the antenna is Iridium certified for worldwide use.

Connections

IRIDIUM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Type: Single

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
Passive Gain (dBi): ~5.1
Efficiency (%): ~82.3
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP
