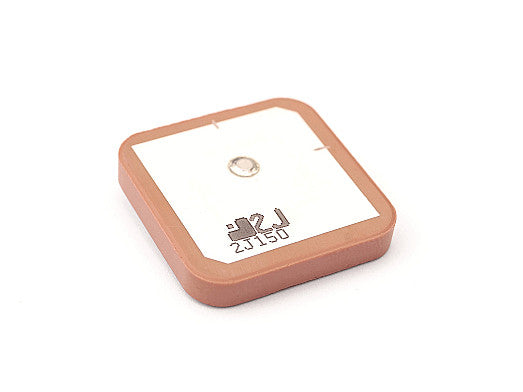

2JCP2543501c Globalstar Antenna ceramic passive thru-hole mount

This compact ceramic passive antenna is designed for reliable Globalstar satellite communication within the 1610-1619 MHz frequency range. Its embedded, ground plane dependent design ensures high efficiency and a peak gain of 4.6 dBi, making it ideal for applications where space is limited and consistent performance is required. Typical use cases include satellite internet, asset tracking, transportation, marine, mining, agriculture, and emergency communications.

Connections

GLOBALSTAR

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Type: Single

Connection 1 - GLOBALSTAR

Standards: Globalstar
Frequency: 1610-1619 MHz
Passive Gain (dBi): ~4.6
Efficiency (%): ~77.2
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Polarisation: LHCP
Axial Ratio (dB): 3 max
