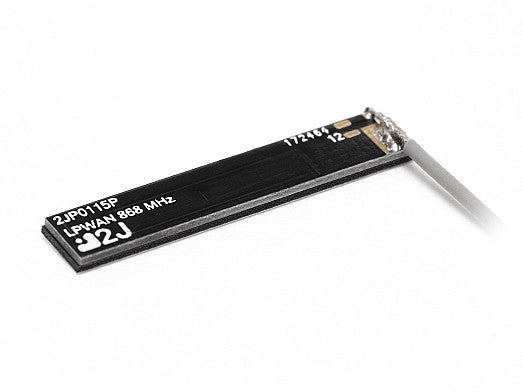

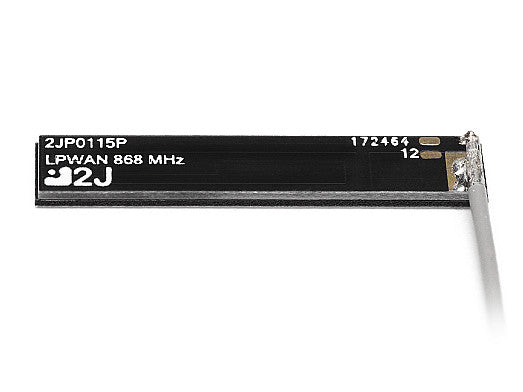

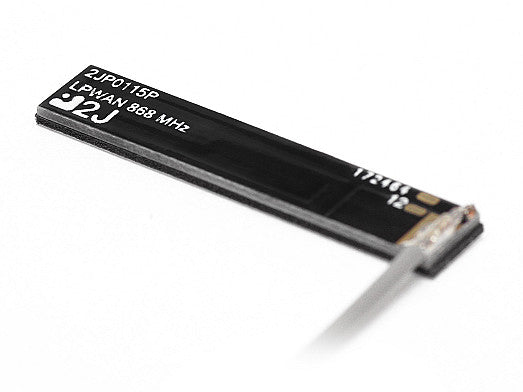

2JP0115P-SP ISM Antenna adhesive mount rigid

This compact rigid antenna is designed for reliable ISM band performance at 868 MHz. Its ground plane independent design and small form factor make it ideal for integration into a wide range of internal applications, including IoT devices, smart home systems, industrial monitoring, and asset tracking. The self-adhesive mounting allows for easy installation on various surfaces, while the fiberglass construction ensures durability and consistent signal quality. Customizable cable and connector options are available to suit specific project requirements.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Type: Single

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~3.0:1
Efficiency (%): ~29.0
Peak Gain (dBi): ~-1.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
