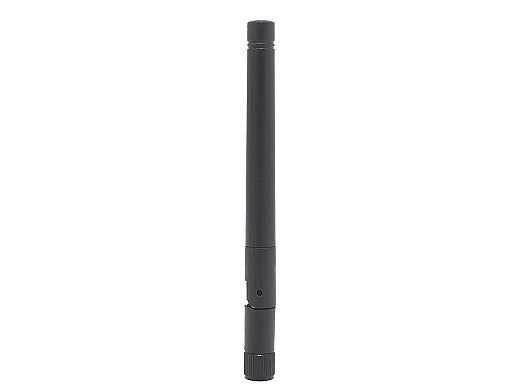

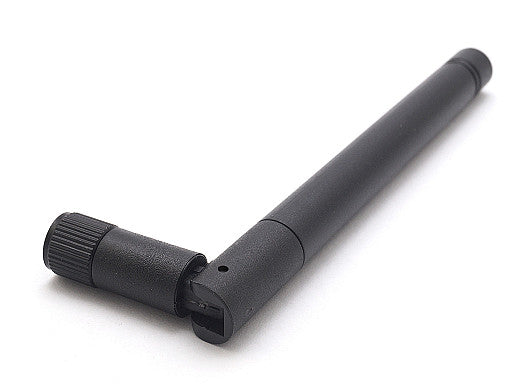

2JW0302-2.4-C442B Wi-Fi, ISM dipole Antenna connector mount

This ultra wideband antenna is engineered for reliable performance across the 2.4 GHz ISM band, making it ideal for Wi-Fi, Bluetooth, ZigBee, and other short-range wireless applications. Its ground plane independent dipole design ensures high efficiency and stable connectivity, even in challenging environments. The hinged connector allows for flexible installation and optimal positioning, making it suitable for smart home, industrial, medical, and IoT deployments.

Connections

2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 2.4 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490 MHz
VSWR: ~1.9:1
Efficiency (%): ~62
Peak Gain (dBi): ~1.5
Impedance (Ohm): 50
Polarisation: Vertical
Max. Input Power (W): 25
