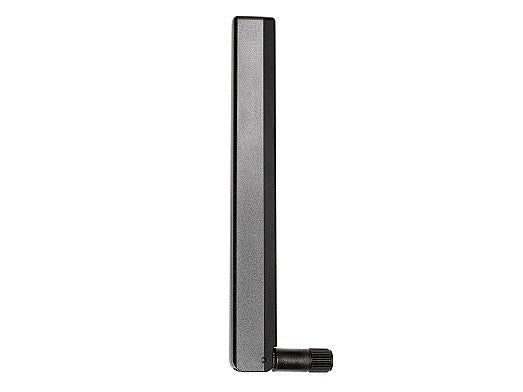

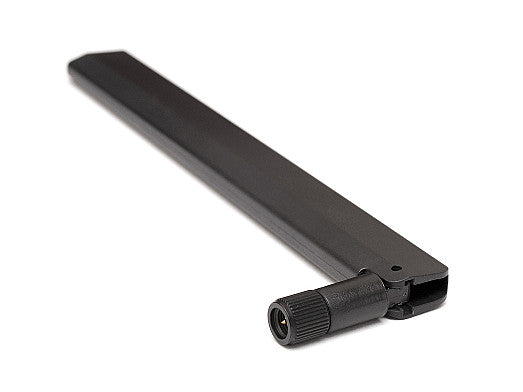

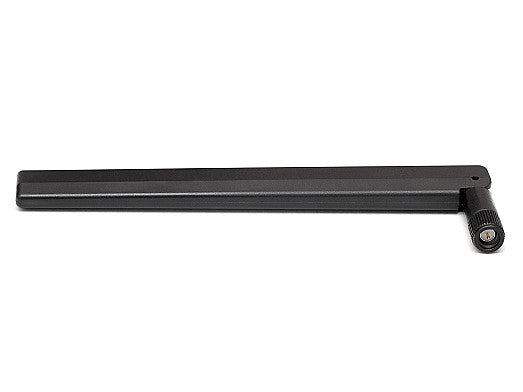

2JW0915-C952B ISM connector mount Antenna

This high-performance antenna is optimized for 868 and 915 MHz ISM bands, offering ground plane independence and reliable operation for a wide range of IoT, LPWA, and industrial applications. Its dipole design ensures efficient signal transmission and reception, making it ideal for smart home, smart city, industrial monitoring, and asset tracking solutions. The hinged connector allows for flexible installation in various environments.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.4:1, ~1.4:1
Efficiency (%): ~73.2, ~82.3
Peak Gain (dBi): ~2.9, ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF
