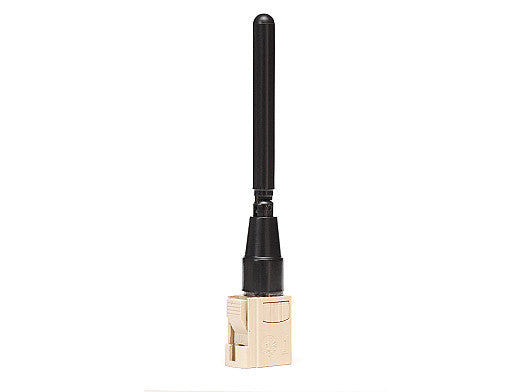

2JW1002-FKI Wi-Fi 6E/7, ISM hinged Antenna Katana Fakra

This ultra-compact monopole antenna delivers high-performance Wi-Fi 6E and Wi-Fi 7 connectivity, supporting 2.4, 5.0, and 6.0 GHz bands. Its small form factor and hinged Fakra connector make it ideal for automotive, IoT, and demanding wireless applications where space is limited and robust mounting is required. The antenna ensures high throughput, low latency, and reliable omnidirectional coverage, making it suitable for gaming, virtual reality, automation, and industrial environments. Its durable construction and ground plane-dependent design provide stable operation even in challenging conditions.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

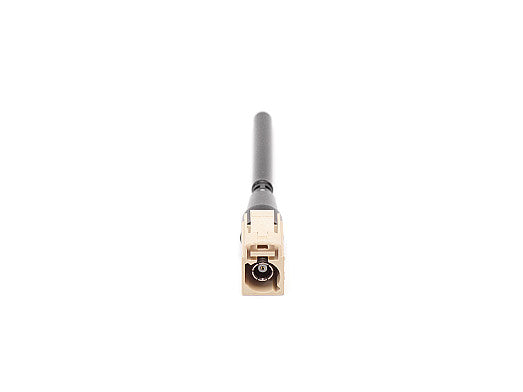

• Connector Type: Fakra I-Beige Female

Installation / Environmental

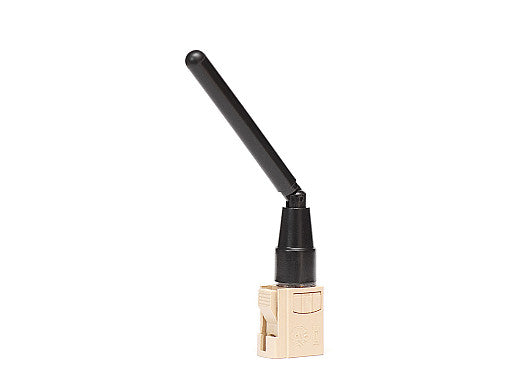

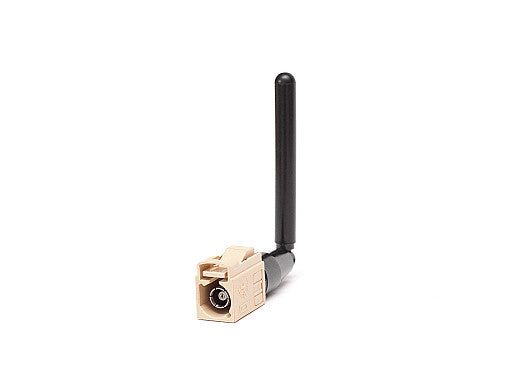

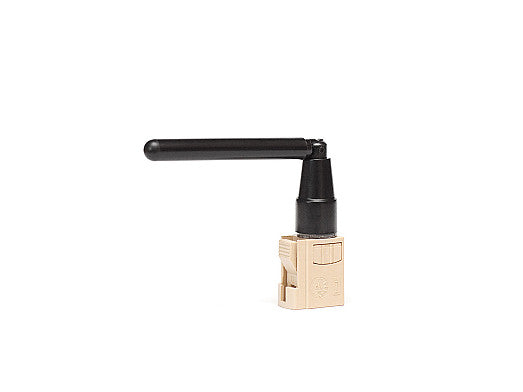

The antenna is designed with a hinged Fakra-I-Beige-Female connector mount. Fakra connectors are the leading choice for automotive applications due to their resistance to vibration and secure and effortless latch and click mechanism. With a low profile dimension of 81 × 14 × 10 mm, this ground plane-dependent antenna has a super small form factor. This unique rotatable hinge design enables the user to rotate the antenna to a position range of 0-90° tilt angle to optimize signal reception into the desired orientation to avoid other antennas or objects. This mechanism also helps improve isolation when used in MIMO systems or when other antennas are in the vicinity. This further optimizes the antenna to a full omni-directional radiation pattern. This antenna comes with a polyoxymethylene (POM) base, which is 100% recyclable and is designed for high stiffness with a low coefficient of friction, excellent wear resistance, and dimensional stability. Made with stable material that has a strong resistance to corrosive chemicals and/or physical impacts, this antenna is extremely durable in temperatures ranging between -40C and +85C. This antenna is designed without any hazardous materials making it fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.3:1, ~3.1:1, ~3.8:1
Efficiency (%): ~58.7, ~33, ~34.1
Peak Gain (dBi): ~2.0, ~1.0, ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
