2JW1102-C943B Wi-Fi 6E/7, ISM swivel Antenna Blade RPSMA-M

Experience next-generation wireless connectivity with this high-performance antenna, designed for Wi-Fi 6E and Wi-Fi 7 technologies. Its tri-band support (2.4/5.0/6.0 GHz) ensures compatibility with the latest routers, gaming devices, IoT solutions, and more. The antenna delivers high gain and efficiency for optimal signal quality, even in crowded environments, making it ideal for commercial, industrial, and residential applications. The compact, robust design features a hinged connector mount for flexible positioning and omni-directional coverage, while the durable ABS housing provides excellent resistance to environmental factors.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: RPSMA-M

Installation / Environmental

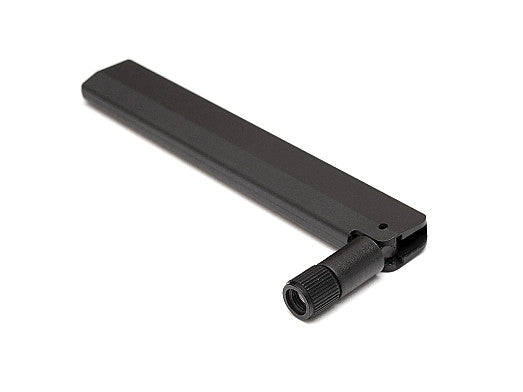

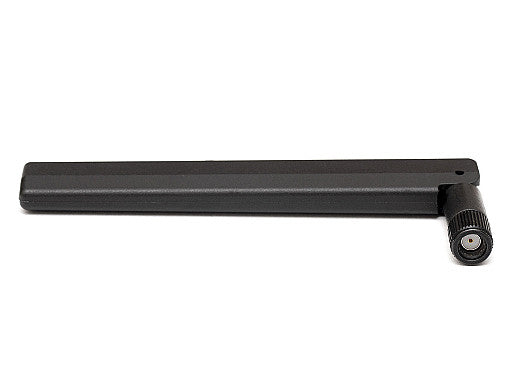

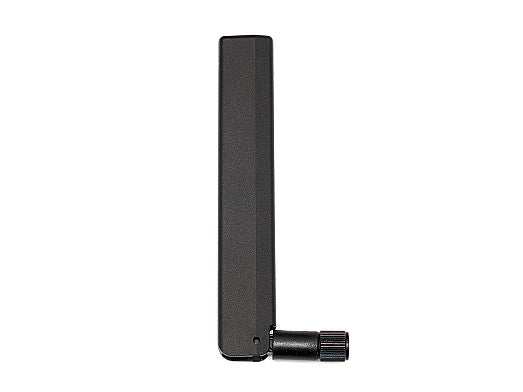

The 2JW1102-C943B is designed within a compact dimension of 135 x 19 x 10 mm and comes with a hinged connector mount that allows for position adjustments of 0, 45° and 90° tilt angle plus 360-degree swivel rotation to avoid other objects and optimize to a full omni-directional radiation pattern. This antenna is manufactured with high-grade ABS UV stable material that has a strong resistance to corrosive chemicals and/or physical impacts making it extremely durable in temperatures ranging between -40C and +85C.
This ground plane independent antenna does not require grounding and can be installed vertically or horizontally on any surface without restrictions. It is important to maximize the position and orientation to optimize its performance during installation. The 2JW1102-C943B is delivered with a standard RP-SMA-Male connector. We also offer a large selection of customized extension cable lengths and connector types. Please contact our team for more information and samples.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.4:1, ~1.7:1, ~2.0:1
Efficiency (%): ~75.8, ~84.5, ~73.0
Peak Gain (dBi): ~4.1, ~3.9, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
