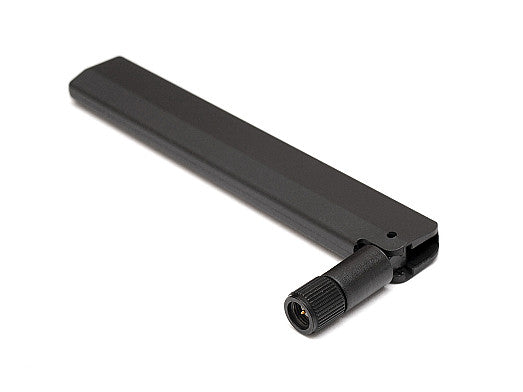

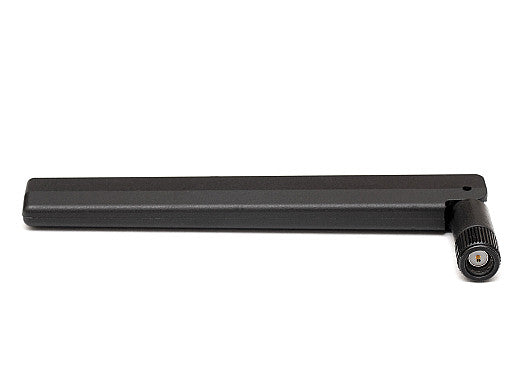

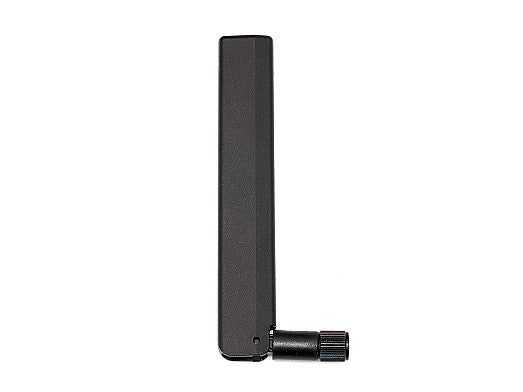

2JW1183-C952B 5G swivel Antenna Blade SMA-M

This ultra-compact antenna delivers high performance and full bandwidth coverage for 5G NR, 4G LTE, 3G, and 2G/CDMA cellular networks. Its innovative hinged swivel design allows flexible positioning—straight, right, or 45-degree angles—enabling optimal signal strength and minimizing interference with nearby antennas. The ground plane independent construction ensures reliable operation across a wide range of installations, while the robust PC/ABS UV-protected housing withstands extreme temperatures, making it ideal for outdoor use in demanding environments.

• Perfect for terminals, base stations, routers, and high-traffic MIMO device connectivity
• Suitable for industrial, commercial, and residential IoT, smart home/office, ATM machines, vending machines, and metering
• Omni-directional radiation pattern for 360-degree signal quality

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M

Installation / Environmental

The antenna housing is manufactured from a PC/ABS UV protective material, allowing it to withstand extreme temperatures ranging between -40°C to +85°C and making it ideal for outdoor applications. The design dimensions are 135 x 19 x 10 mm (straight angle), 110 x 42 x 10 mm (right angle) and 88 x 112 x 10 mm (45-degree angle). This antenna is ground plane independent allowing for a wide range of installation options with minimal restrictions. All products are manufactured without hazardous materials, ensuring full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-11.2, ~-10.7, ~-11.4, ~-8.8
VSWR: ~2.0:1, ~2.6:1, ~2.3:1, ~2.2:1
Efficiency (%): ~37.6, ~43.3, ~35.1, ~41.9
Peak Gain (dBi): ~-1.1, ~0.5, ~0.3, ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
