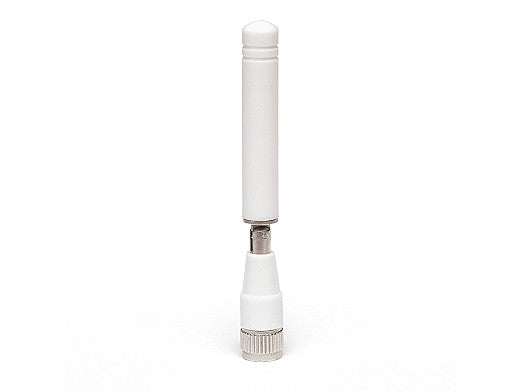

2JW1683 5G swivel Antenna Katana SMA-M

This ultra-compact antenna delivers high-precision performance for 5G NR, 4G LTE, 3G, and 2G applications. Its advanced monopole design ensures reliable connectivity across sub-6 GHz frequencies, making it ideal for mobile broadband, IoT, and mission-critical wireless systems. The low-profile, hinged swivel connector allows flexible installation on both vertical and horizontal surfaces, while the robust construction ensures long-term durability. Perfect for access points, terminals, mobile gateways, routers, and wireless devices requiring superior signal penetration and efficiency.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M

Installation / Environmental

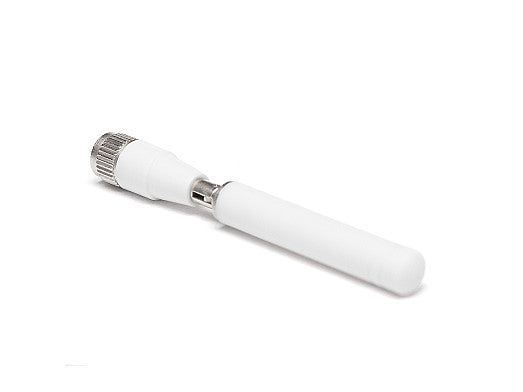

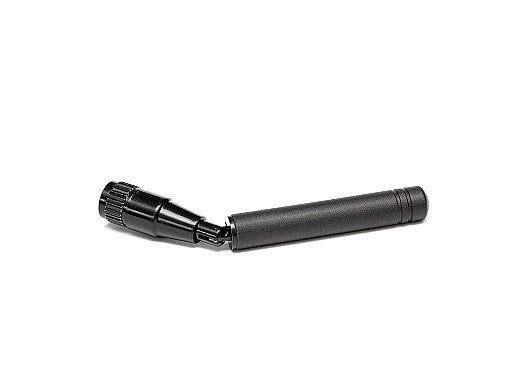

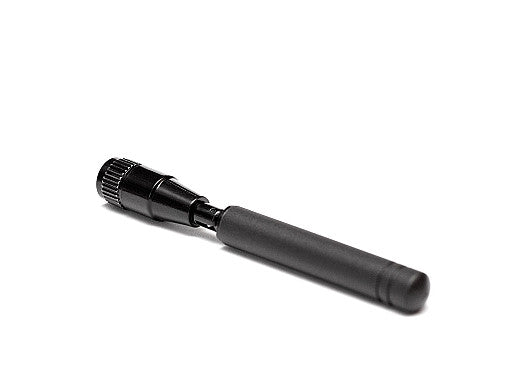

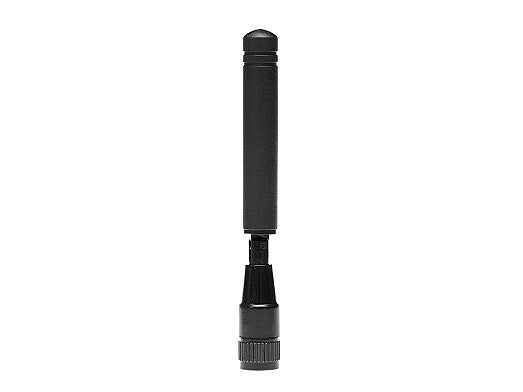

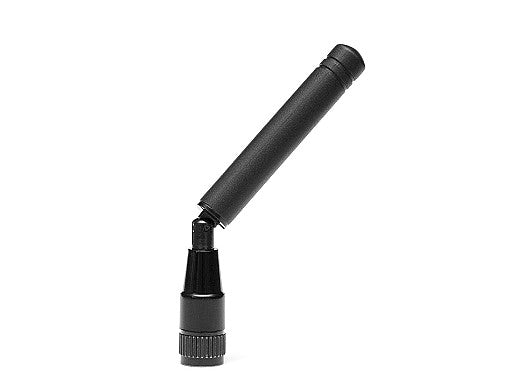

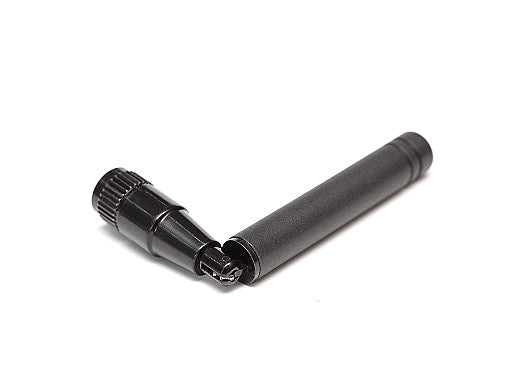

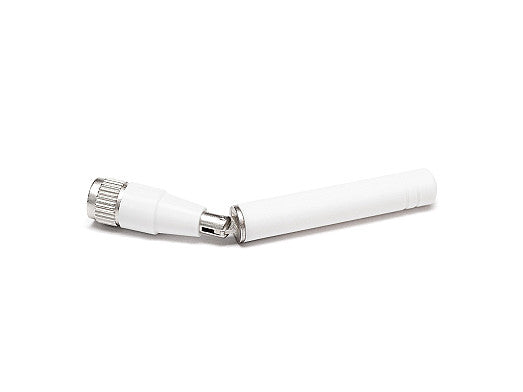

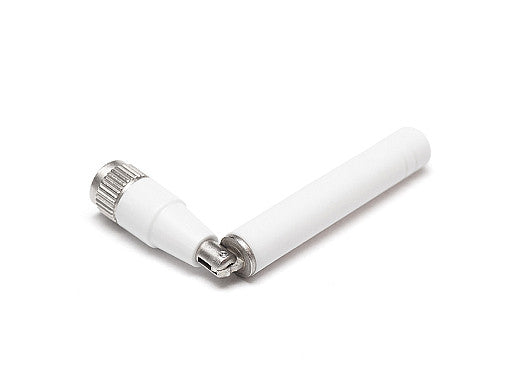

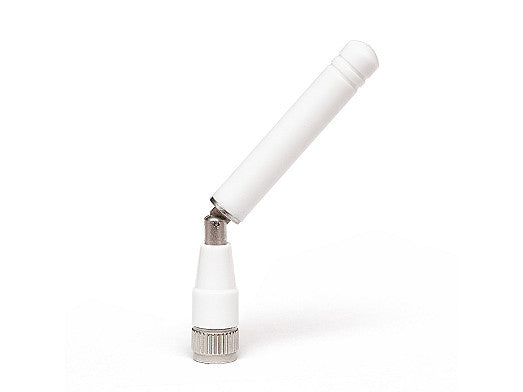

The antenna comes in white and black standard colors with a SMA-Male in swivel connector that allows for 45° to 90° tilt position range avoiding other objects or antennas and also allowing flexible integration to vertical or horizontal surfaces. The antenna base is made with polyoxymethylene (POM), this thermoplastic is designed for high stiffness, low friction, and excellent dimensional stability. Dimensions of Ø 10 × 80 mm give this ground plane dependent antenna a super low profile form factor. Supports the health of our environment and manufactures all products without hazardous materials making it fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Connector Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.3, ~-14.5, ~-4.8, ~-2.5
VSWR: ~3.4:1, ~1.7:1, ~4.4:1, ~7.0:1
Efficiency (%): ~51.3, ~57.0, ~31.3, ~18.0
Peak Gain (dBi): ~0.6, ~2.9, ~0.2, ~-6.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
