SW20264IB93 GNSS Adhesive Antenna Welding

Product Overview:

The SW20264IB93 is a compact adhesive GNSS antenna designed for reliable global navigation satellite system reception. It supports GPS, GLONASS, and GALILEO, making it ideal for automotive and IoT applications.

Key Features:
- Adhesive mount for easy installation
- Supports GPS, GLONASS, and GALILEO systems
- Compact design for space-saving applications
- Reliable performance in extreme temperatures
- RHCP polarization for optimal signal quality

Technical Specifications:
- Mounting Type: Adhesive
- Connector Type: Welding

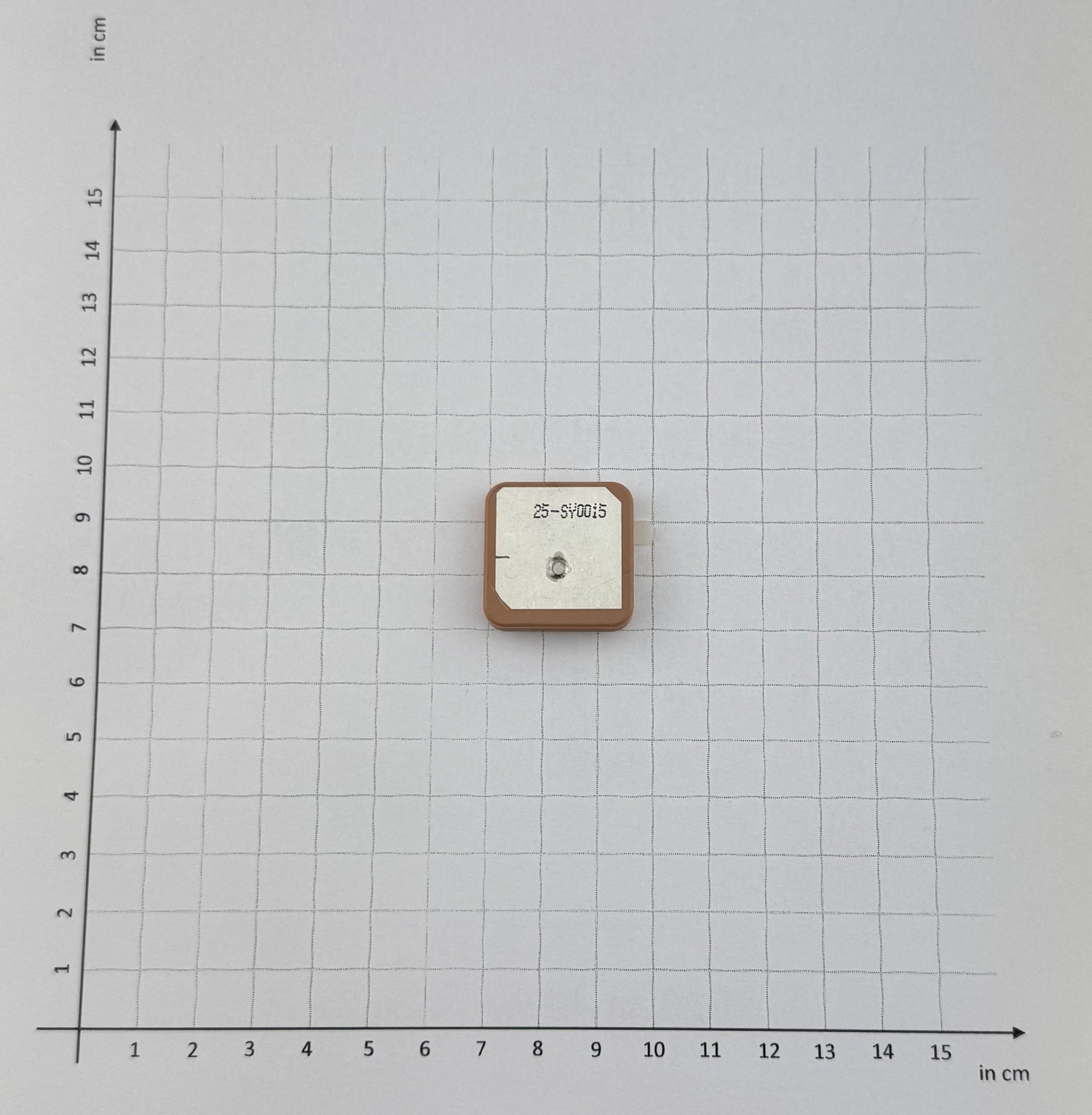

- Dimensions: 25(L) x 25(W) x 4(H) mm
- Operating Temperature: -40°C to +85°C
- Frequency Range: 1575.42 MHz / 1602 MHz / 1608 MHz
- Colour: Black
- Peak Gain: 5.2 dBi / 4.3 dBi / 4.0 dBi
- Impedance: 50 Ohm
- Polarization: RHCP
- Max Input Power: N/A

Installation Notes:

Select a location with a clear view of the sky for best performance. Clean the mounting surface and apply the antenna using the adhesive backing. Press firmly to ensure a secure attachment and allow the adhesive to set before use.

Frequently Asked Questions:

Q1: How is this antenna installed?

A1: The antenna features an adhesive mount, allowing it to be easily attached to flat surfaces.

Q2: What are the primary applications for this antenna?

A2: This antenna is suitable for automotive and IoT applications where GNSS reception is required.

Inquire for customization options eg connector, cable length, and bulk quantity.
