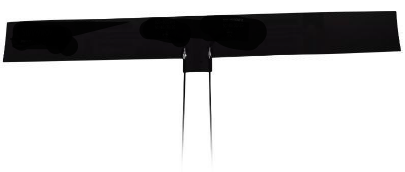

SW20273IB77 5G/4G Multi-Band Adhesive Antenna RF1 10cm

Product Overview:

The SW20273IB77 is a multi-band adhesive antenna designed for a range of applications including 5G, 4G, and GPS. It features multiple cables for enhanced performance across different frequency bands.

Key Features:
- Multi-band support for 5G, 4G, GPS, and more
- Slim design with adhesive mounting for easy installation
- Compatible with GPS/GLONASS/GALILEO
- Wide operating temperature range for durability
- RF1 connector for easy integration

Technical Specifications:
- Mounting Type: Adhesive
- Connector Type: RF1 Standard
- Dimensions: 289.5(L) x 25.0(W) x 0.12(H) mm
- Cable Length: 100 mm
- Operating Temperature: -20°C to +60°C
- Frequency Range:
- Cable 1: 600~960 MHz / 1400~2700 MHz / 3000~6000 MHz
- Cable 2: 1575 MHz / 1602 MHz
- Colour: Black
- Peak Gain: 0~4.0 dBi
- Impedance: 50 Ohm
- Polarization: Linear
- Max Input Power: 5W

Installation Notes:

Clean the mounting surface thoroughly before installation. Attach the antenna using the adhesive mount and ensure it is securely in place. Allow the adhesive to cure fully before subjecting the installation to stress or vibration.

Frequently Asked Questions:

Q1: Does this antenna support GPS?
A1: Yes, it supports GPS, GLONASS, and GALILEO systems.

Q2: How do I install the antenna?
A2: The antenna can be easily installed using its adhesive base.

Inquire for customization options eg connector, cable length, and bulk quantity.

Support and Documentation
Download: Datasheet
