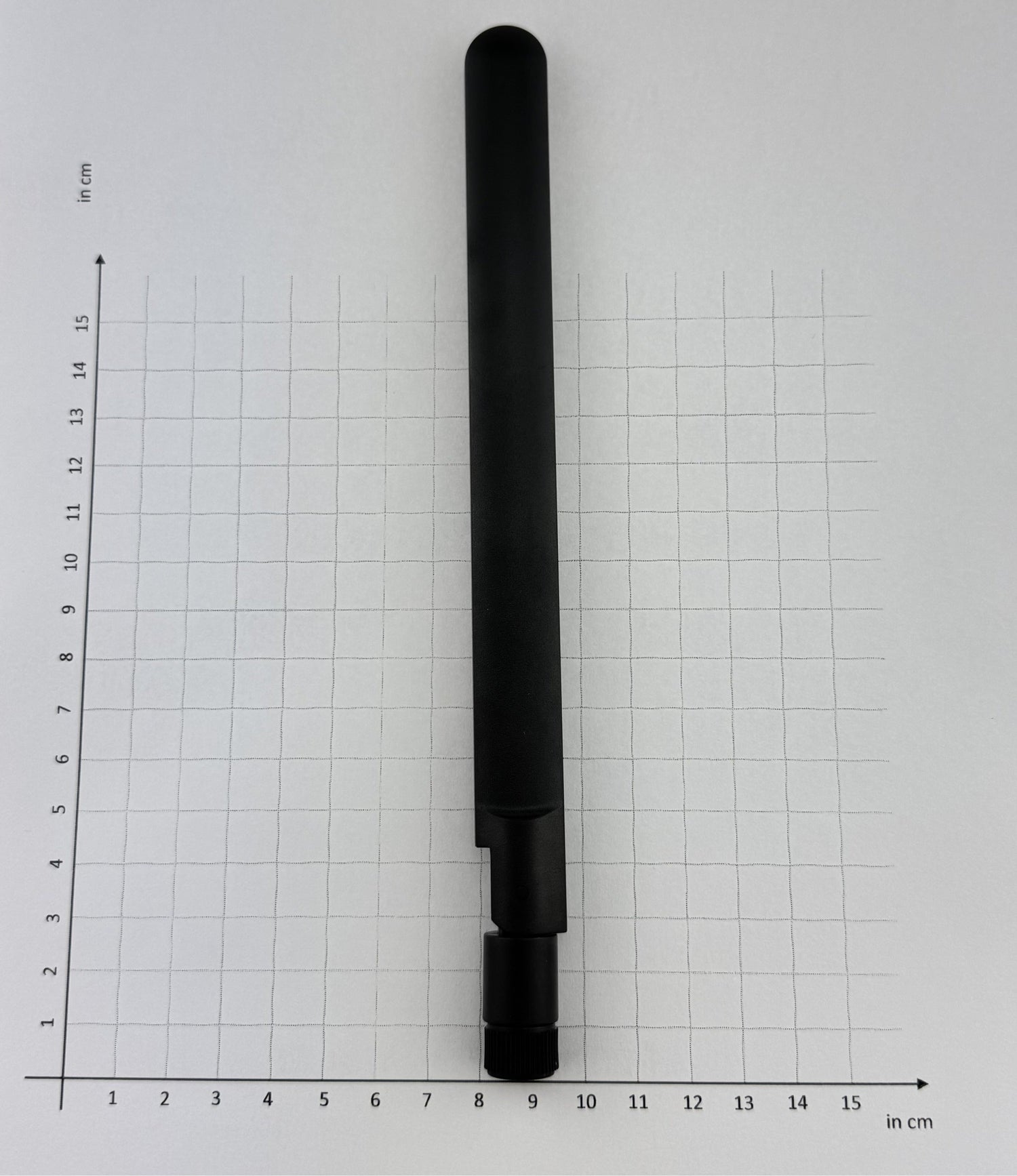

SZ20228WB56 5G Multi-Band External Antenna SMA-M

Product Overview:

The SZ20228WB56 SMA/M is a versatile external antenna designed to support a wide range of wireless technologies, including 5G, 4G, 3G, 2G, NB-IoT, CAT M1, and more. With its robust connector mount and durable construction, this antenna is ideal for both indoor and outdoor installations in demanding environments.

Key Features:
-Supports 5G, 4G, 3G, 2G, NB-IoT, CAT M1, and WiFi
-SMA-M connector for easy integration
-Rugged design suitable for harsh environments
-High gain across a wide frequency range

Technical Specifications:
-Mounting Type: Connector Mount
-Connector Type: SMA-M
-Dimensions: ?13 x 193 mm
-Operating Temperature: -40°C to +85°C
-Frequency Range: 600~960 MHz / 1400~2700 MHz / 3000~6000 MHz
-Peak Gain: -3.0~5.0 dBi
-Impedance: 50 Ohm
-Polarization: Linear
-Max Input Power: 5W

Installation Notes:

Ensure the antenna is securely mounted using the SMA connector. For optimal performance, install the antenna in a location with minimal obstructions to the signal path.

Frequently Asked Questions:

Q1: Is this antenna suitable for both indoor and outdoor use?

A1: Yes, the antenna's rugged design makes it suitable for both indoor and outdoor environments.

Inquire for customization options eg connector, cable length, and bulk quantity.

Support and Documentation
Download: Datasheet
